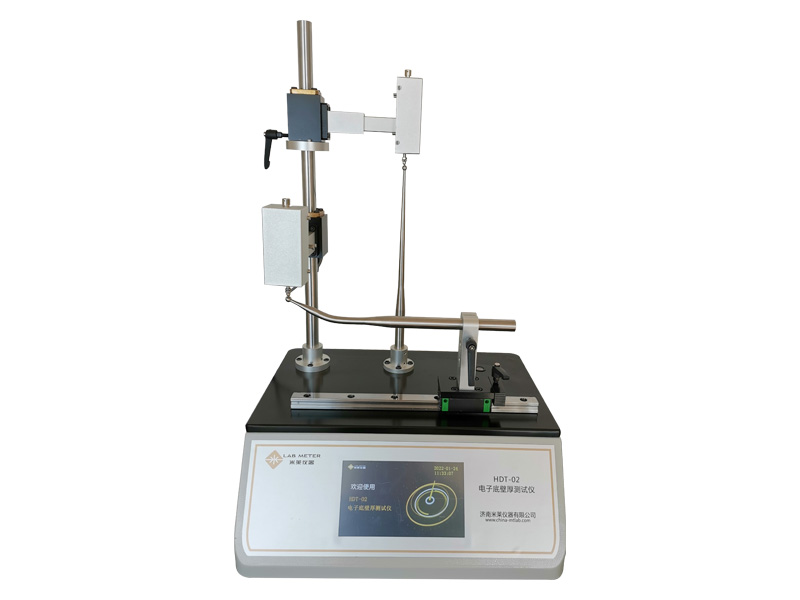

HDT-02 Bottle bottom wall thickness tester

HDT-02 glass bottle bottom wall thickness gauge is suitable for bottom wall thickness detection of injection, oral liquid, antibiotic, infusion bottles and various bottle products in the bottle and can industry, beer, beverage bottles and pharmaceutical industry. The equipment is in accordance with GB12415, GB2641, GB2639, and YBB2015 standards for drug packaging materials.

Online consultation
Consultation hotline:0531-88691870

Product Introduction / Product introduction

Product Features

7-inch large LCD touch screen display, dual probe measurement;

Equipment automatic recording, specialized software analysis;

Test the thickness of various bottles, such as the bottom, wall thickness, and shoulder thickness;

Real time display of measurement point thickness values, continuous measurement, real-time display of maximum, minimum, and thickness to thickness ratio;

Equipped with a micro printer to print the results of each measurement, as well as the maximum, minimum, and thickness ratio;

The device has storage function, making it easy to query records;

Wide range, different measuring rods can measure the bottom and wall thickness of various types of bottles;

Capable of managing GMP permission requirements.


Technical indicators

Measurement range: 0-12.7mm

Resolution: 0.001mm

Sample diameter: 5mm-300mm (other sizes can be customized)

Sample height: 5mm-330mm (other sizes can be customized)

Boundary dimension: 410 (L) mm × 330(W)mm × 680(H)mm

Instrument weight: 35kg


Product configuration

Host, micro printer, bottom thickness measuring head, wall thickness measuring head
