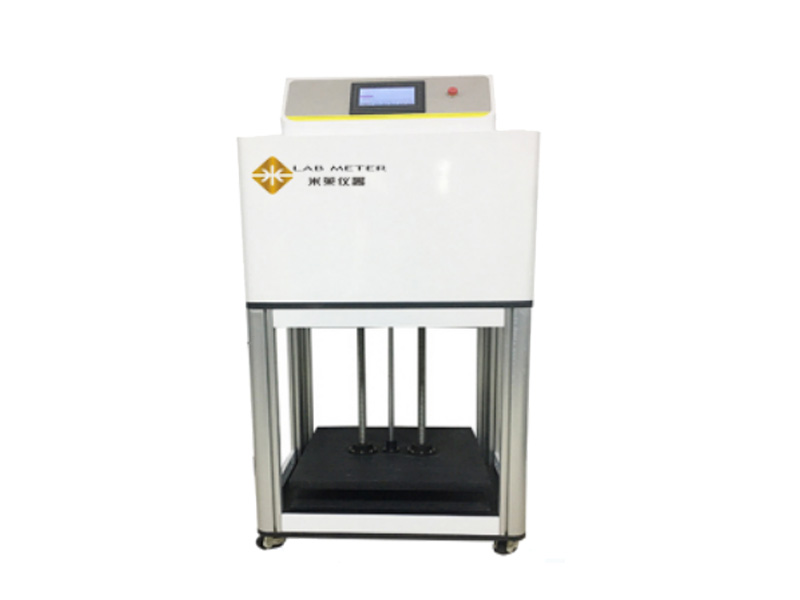

Product characteristics
Small integrated design, support a wide range of power supply, to meet the test requirements of various occasions
Provide A variety of test methods such as crushing force test, stacking test A, stacking test B, etc
Dynamic display test pressure, sample deformation, convenient to check the test data at any time
High quality motor with ball screw, test speed can be set freely
Overload protection, stroke protection, automatic fault alarm and other intelligent design
Embedded computer system platform, instrument and software integration, intelligent operation
Windows style form interface, keyboard, mouse control, simple and convenient
Equipped with series ports and network ports for easy data transmission
Meet the requirements of Chinese GMP for data traceability and meet the needs of the pharmaceutical industry (optional)
Scope of application
Basic application | Carton crush test | Used to measure the force value of corrugated cartons, honeycomb cartons and other samples when they are crushed |
Carton stacking test A | Used to measure the deformation of corrugated cartons, honeycomb cartons and other samples when stacking |
Carton stacking test B | It is used to measure whether the deformation of corrugated cartons, honeycomb cartons and other samples under a certain force value is within the acceptable range within a certain period of time |
Extended application | Empty container collapse test | Used to measure the force value of hollow vessel and other samples when they are crushed |
Hollow container stacking test A | It is used to measure the deformation of the sample when stacking on the sample such as hollow container |
Hollow container stacking test B | It is used to measure whether the deformation of hollow vessels and other samples under a certain force value within a certain period of time is within the acceptable range |
Reference standard
GB/T16491 electronic universal testing machine
GB/T4857-4 Packaging for transport - Basic tests - Part 4: Compression and stacking test methods using pressure testing machines
ISO12048 packaging -- full transport packaging -- was compressed and stacked using a compression testing machine
ASTMD642 Test method for determination of Compressive strength and unit Load of Containers and components
ASTMD4169 Code for Performance testing of shipping containers and Equipment
TAPPIT804 Fiberboard Container compression test
JISZ0212 Packing goods and containers. Compression test method
Technical parameter
Range: 9000N
Accuracy of force value: indicating value ±1% (10%-100% of sensor specification)
±0.1%FS (0%-10% of sensor size)
Force resolution: 1N
Deformation resolution: 0.01mm
Test speed: 0~200mm/min (speed can be set)
Speed accuracy: indicated value ±2%
Stroke: 600mm
Sample height: 0~600mm
Sample space: 0.8m(L)×0.8m(W)×0.61m(H)
Overall size: 0.85m(L)×1.01m(W)×1.66m(H)
Power supply: AC220V±10%50Hz
Net weight: 245kg
Standard configuration
Standard configuration: host, micro printer
Optional: measurement auxiliary devices, GMP computer system requirements
