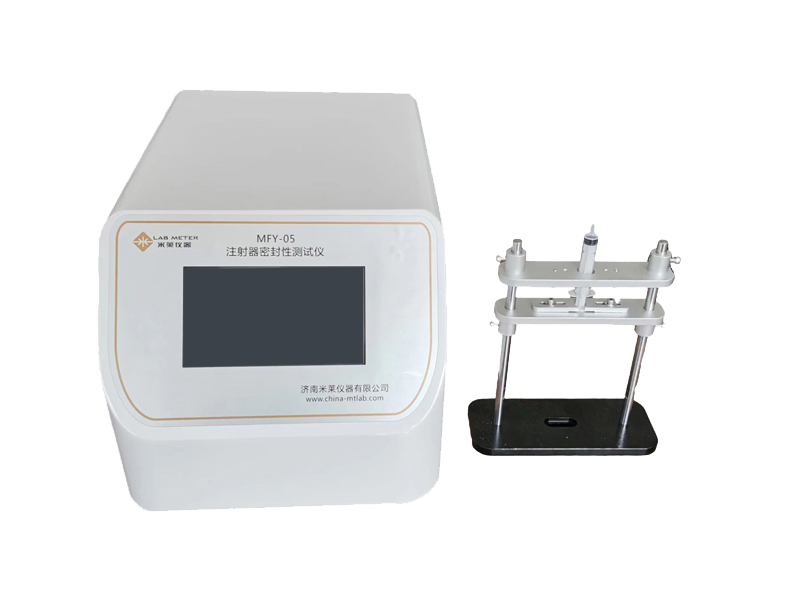

MFY-05 Syringe sealing tester

MFY-05 syringe sealing tester is suitable for the determination of negative pressure tightness of disposable syringes, pre-sealed syringes, infusion sets, non-vascular catheters, etc. It is widely used in medical instruments, cosmetics, pharmaceuticals, quality inspection, drug testing and other industries. The sealing technology and sealing performance of the products can be compared and evaluated effectively through the test, which is an important means to identify and improve the tightness of medical syringes.

Online consultation
Consultation hotline：0531-88691870

Product Introduction / Product introduction

Test principle

The syringe is sucked into no less than 25% of the nominal capacity of the water, so that the cone head upward, pull back the piston, so that the datum line and the nominal capacity line coincide, and then put on the syringe fixed frame, the negative pressure output pipe of the tester firmly installed on the syringe cone head, press the test key, the tester will automatically test.


MFY-05 syringe sealing tester technical description

(1) Product characteristics

7 inch LCD display, high degree of intelligence, "one key" operation

With a full set of imported pneumatic components, the performance of the test system is stable

Vacuum degree automatic maintenance and backblow unloading and automatic end of the test function, the test process is fully automatic

Digital vacuum and test time setting

The instrument has the GMP requirement level 3 authority protection level, the operator can set the exclusive login name and password combination to enter the instrument operation

Meet the requirements of GMP data local storage, automatic processing, statistical test data functions

With storage function, the device can directly store test results for historical data query


(2) Technical parameters

Test range :10kpa~100kpa (standard 88kpa)

Test time: 0-999.9s

Air source pressure :0.7MPa (self-provided air source)

Air source interface: Φ6mm polyurethane pipe

Test interface: needle special interface

Equipment size: 300mm(L)X380mm(W)X500mm(H)

Power supply: AC220V50Hz

Net weight: 15kg


Testing standard

Comply with ISO7886-1, ISO8537-2016, YY0497-2018, GB15810-2019


Test application

Determination of negative pressure tightness of disposable syringes, pre-sealed syringes, infusion sets, non-vascular catheters, etc.


Product configuration

Standard configuration: host, special test device, rights management system, LCD touch screen

Air source (provided by air compressor)
