Food packaging tension machine principle

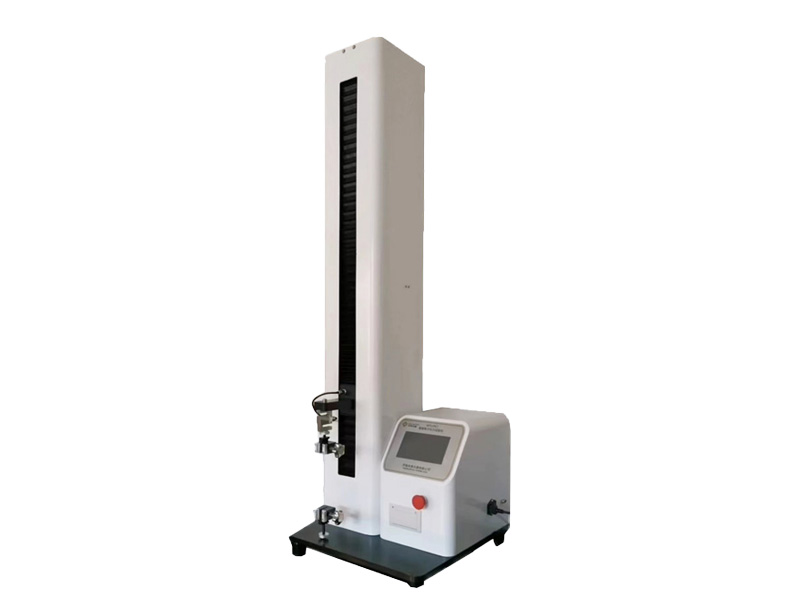

MTL-500N intelligent electronic tensile testing machine, the sample is clamped between the two chuck of the fixture, the two chuck do relative motion, through the force sensor located in the dynamic chuck head and the machine built-in displacement sensor, collected in the process of the test force change and displacement change, so as to calculate the sample tensile, tearing, deformation rate and other performance indicators.
Technical specification
(1) Product characteristics
Microcomputer control, large LCD screen display, one key operation
Computer control system, microcomputer control system can be switched
Test data automatic storage, multi - form file query
A testing machine integrates tensile, stripping, tearing and other independent testing procedures to meet different customer testing requirements
Precision ball screw drive system, with stepless speed regulation function, to achieve arbitrary adjustment of test speed, precise displacement control
The system supports two - way experimental modes of stretching and compression
Different fixtures can be extended to achieve dozens of projects of testing
Intelligent configuration, such as limit protection, overload protection, automatic return, and power failure memory, ensures user's operation safety
Professional control software provides a variety of practical functions such as statistical analysis of groups of samples, overlay analysis of test curves, and comparison of historical data
It has many functions such as parameter setting, printing, viewing and calibration
(2) Technical parameters
Test range: 0-500N(50N, 100N, 200N, 1000N other ranges optional)
Measurement accuracy: 0.3 level
Stroke: 1000mm
Test speed: 0.1-500mm/min stepless transmission
Displacement accuracy: 0.01mm
Sample quantity: 1 piece
Chuck size: 0-30mm
Shape: 450mm(L)×500mm(B)×1500mm(H)
Weight: 75kg
Testing standard
The instrument meets a number of national and international standards: GB 8808, GB/T 10400.1-2006, GB/T 10400.2-2006, GB/T 1040.3-2006, GB/T 10400.4-2006, GB/T 2791, GB/T 10400.5-2008, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 2790, GB/T 2792, GB/T 17590, GB/T 4850-2002, QB/T 2358, QB/T 1130, GB/T
Test application

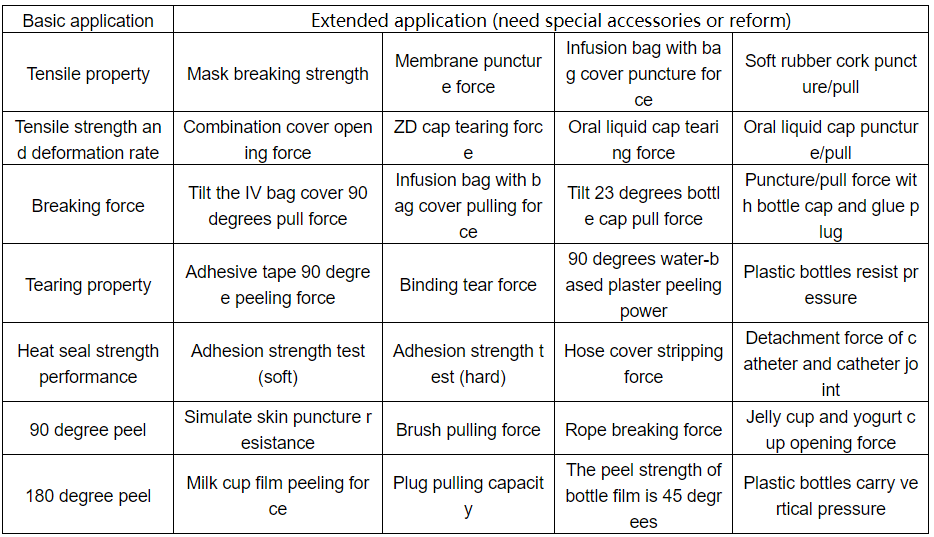

Food packaging tension machine, has a rich application, equipped with more than 100 different sample fixture, can meet more than a variety of materials testing requirements; According to the different user materials, we can provide customized services to meet the testing needs of different users.
Product configuration
Standard configuration: host, standard fixture set, micro printer, professional software, communication cable
Optional: Computer, non-standard fixture
