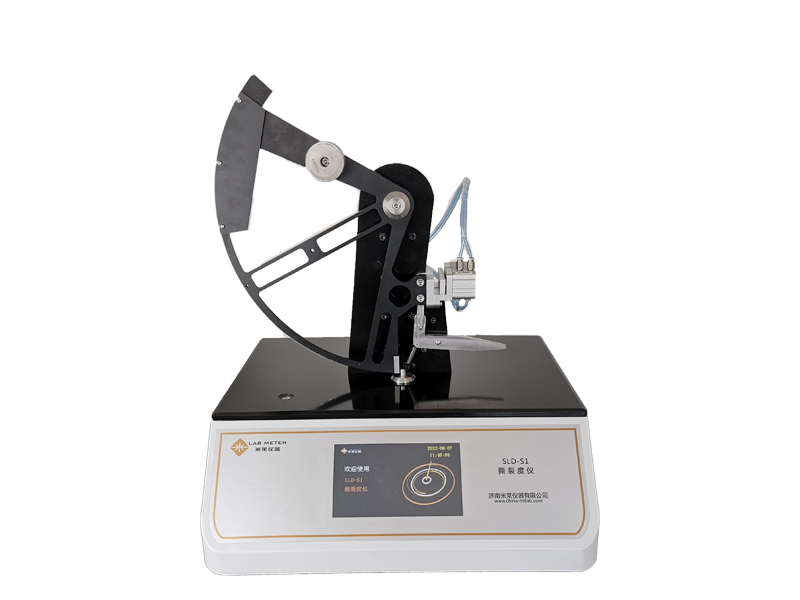

SLD-S1 Tearing tester

  The SLD-S1 tear tester is designed according to the standard requirements of the Elemendorf method and is suitable for testing tear strength of materials such as film, thin film, PVC, PVDC, fabric, polypropylene, polyester, paper, cardboard, non-woven fabric, etc.

Online consultation
Consultation hotline:0531-88691870

Product Introduction / Product introduction

Testing Principles

Raise the pendulum to a certain height, so that it has a certain potential energy; When the pendulum freely swings down, use its stored energy to tear the sample; The microcomputer control system automatically calculates the energy consumed when tearing the sample, thereby obtaining the force required to tear the sample.


technical characteristics

Microcomputer control, 7-inch LCD display, intelligent operation interface

Automated electronic measurement ensures more accurate test results

Horizontal adjustment assistance ensures that the instrument is always in the best testing state

Pneumatic clamping of the sample, automatic release of the pendulum, to avoid system errors caused by human factors

Multiple sets of pendulum capacity options to meet different testing needs of users

Equipped with a micro printer with storage function for convenient vertical data query

Can collect ten sets of experimental data and automatically provide results such as maximum, minimum, and average values


technical parameter

Pendulum capacity: 200GF, 400GF, 800GF, 1600GF, 3200GF, 6400GF

Air source pressure: 0.6Mpa (self configured by the air source user)

air connection Ф 6mm polyurethane pipe

Tearing force arm 104 ± 1mm

Tear initial angle 27.5 ± 0.5 °

Power supply AC220V 50Hz

Size 480mm (L) * 400mm (W) * 520mm (H)

Weight 45kg


Testing standards

This equipment meets multiple national and international standards: GB/T16578.2-2009, GB/T455, ASTMD1922, ASTMD1424, ASTMD689, ISO6383, ISO1974


Product configuration

Standard configuration: host, 1 200gf basic pendulum, 1 weight increase weight, 1 calibration weight, and a micro printer

Option: Basic pendulum 1600gf; Weight gain weights: 400gf, 800gf, 3200gf, 6400gf

Calibration weights: 200GF, 400GF, 800GF, 1600GF, 3200GF, 6400GF
