测试原理
将试样装夹在夹具的两个夹头之间，两夹头做相对运动，通过位于动夹头上的力值传感器和机器内置的位移传感器，采集到试验过程中的力值变化和位移变化，从而计算出试样的拉伸、撕裂、变形率等性能指标。
产品特征
微电脑控制、大液晶触摸屏显示，一键化操作；
设备集成拉伸、剥离、撕裂、热封等多种独立的测试程序，满足不同材料测试需求；
0.3级测试精度，保证试验结果的准确性；
精密滚珠丝杠传动、伺服驱动系统，设备无级调速，实现试验速度任意调节，位移精确控制；
系统支持拉伸、压缩双向实验模式；
不同夹具可扩展实现几十种项目的测试；
限位保护、过载保护、自动回位等智能配置,操作便捷、安全；
具有参数设置、查看、清除、标定等多项功能；
配备微型打印机，实时打印试验结果；
具备存储功能，方便对历史数据进行查询、分析。
Test principle
The sample is clamped between the two collets of the fixture, and the two collets move relative to each other. Through the force sensor located on the dynamic collet head and the displacement sensor built in the machine, the change of force value and displacement in the test process are collected, so as to calculate the tensile, tearing, deformation rate and other performance indicators of the sample.
Product characteristics
Microcomputer control, menu interface, large LCD display
Computer control system, microcomputer control system can be switched
Test data computer storage, multi - form file query
A testing machine integrates tensile, stripping, tearing and other independent testing procedures to meet different customer testing requirements
Precision ball screw drive, servo drive system, equipment stepless speed regulation, realize the test speed arbitrary adjustment, precise displacement control
The system supports two - way experimental modes of stretching and compression
Different fixtures can be extended to achieve dozens of projects of testing
Intelligent configuration, such as limit protection, overload protection, automatic return, and power failure memory, ensures user's operation safety
Professional control software provides a variety of practical functions such as statistical analysis of groups of samples, overlay analysis of test curves, and comparison of historical data
It has many functions such as parameter setting, printing, viewing, clearing and calibration
Technical parameter
Test range: 0-500N(50N, 100N, 200N, 1000N other ranges optional)
Measurement accuracy: better than 0.3 grade
Stroke: 1000mm
Test speed: 0.1-500mm/min continuously variable speed
Displacement accuracy: 0.01mm
Sample quantity: 1 piece
Chuck size: 0-30mm
Shape: 450mm (L) ×500mm (B) ×1500mm (H)
Weight: 75kg
Expand the application
Equipment has a rich application, equipped with more than 100 different sample fixture, can meet more than a variety of material testing requirements; According to the different user materials, we can provide customized services to meet the testing needs of different users.

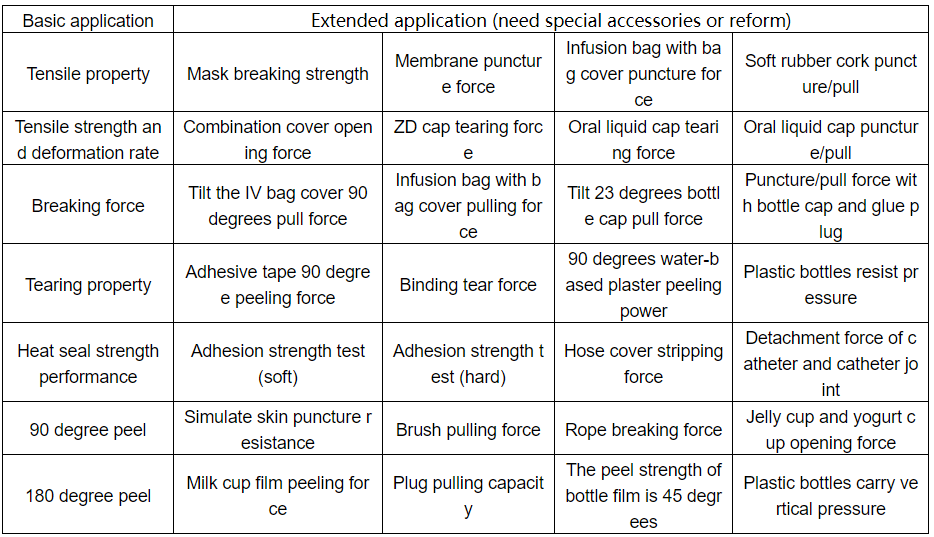

Basic application | Extended application (need special accessories or reform) |
Tensile property | Mask breaking strength | Membrane puncture force | Infusion bag with bag cover puncture force | Soft rubber cork puncture/pull |
Tensile strength and deformation rate | Combination cover opening force | ZD cap tearing force | Oral liquid cap tearing force | Oral liquid cap puncture/pull |
Breaking force | Tilt the IV bag cover 90 degrees pull force | Infusion bag with bag cover pulling force | Tilt 23 degrees bottle cap pull force | Puncture/pull force with bottle cap and glue plug |
Tearing property | Adhesive tape 90 degree peeling force | Binding tear force | 90 degrees water-based plaster peeling power | Plastic bottles resist pressure |
Heat seal strength performance | Adhesion strength test (soft) | Adhesion strength test (hard) | Hose cover stripping force | Detachment force of catheter and catheter joint |
90 degree peel | Simulate skin puncture resistance | Brush pulling force | Rope breaking force | Jelly cup and yogurt cup opening force |
180 degree peel | Milk cup film peeling force | Plug pulling capacity | The peel strength of bottle film is 45 degrees | Plastic bottles carry vertical pressure |
Test standard
The instrument meets several national and international standards：GB8808、GB/T1040.1-2006、GB/T1040.2-2006、GB/T1040.3-2006、GB/T1040.4-2006、GB/T2791、GB/T1040.5-2008、GB/T12914-2008、GB/T17200、GB/T16578.1-2008、GB/T2790、GB/T2792、GB/T17590、GB/T4850-2002、QB/T2358、QB/T1130、GB/T7122、ISO37、ASTMD882、ASTME4、ASTMD3330、ASTMF904、ASTMF88、ASTMD1938
Product configuration
Standard configuration: host, standard fixture set, micro printer, professional software, communication cable
Optional: Computer, non-standard fixture
