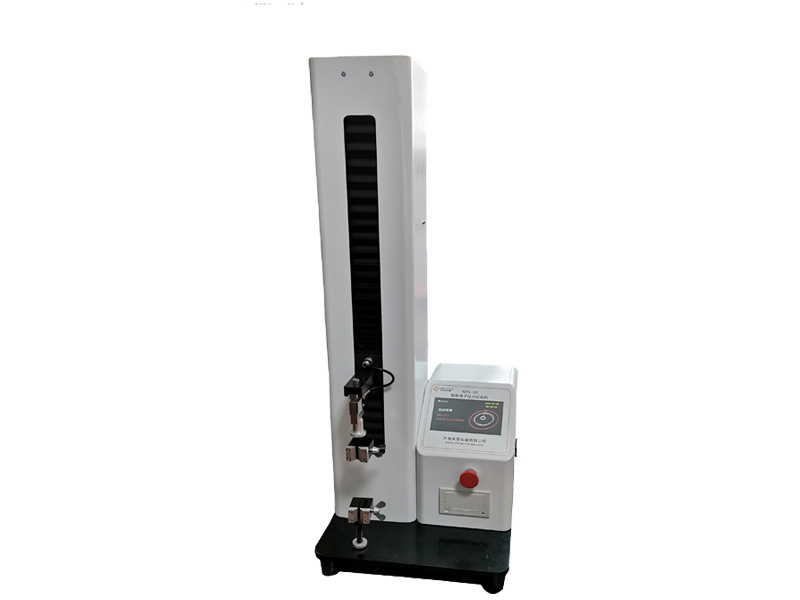

Test principle
The sample is sandwiched between two collets, and the two collets move relative to each other. The force change and displacement change in the process are accurately measured by the tearing tension tester force system. Real-time recording of force changes during the test process to obtain corresponding test data.
Technical characteristics
Microcomputer control, 7 inch LCD display, one key intelligent operation;
Precision ball screw drive, better than 0.5 test accuracy, to ensure the accuracy of the test;
The system supports two-way test mode of tensile and compression.
Equipment continuously variable speed, the test speed can be adjusted arbitrarily;
Limit protection, overload protection, automatic return and other intelligent configuration, to ensure the user's operation safety;
Meet the mechanical properties of various pharmaceutical packaging materials test;
At the same time, the instrument has more than ten separate experimental items, such as tensile, compression bidirectional test, peeling strength, opening force, puncture force, etc.
The equipment is equipped with a micro printer, which can print test results at any time;
Professional software support, support data, curve transmission, convenient test results storage.
Technical parameter
Test range: 0-200N(10N, 50N, 100N, 500N and other ranges are optional)
Measurement accuracy: better than 0.5 grade
Measurement speed: 0.1-500mm/min stepless transmission
Displacement accuracy: 0.01mm
Stroke: 600mm
Sample width: 30mm (standard fixture)
Sample quantity: 1 piece
Instrument size: 430mm(L)×430mm(W)×1050mm(H)
Power supply: AC220V50HZ
Weight: 50kg
Test standard
GB2637, YBB00112004-2015, YBBOO102003-2015, YBBOOl12003-2015, YBB00122003-2015, YBB00042005-2015, YBB00372003-2015, YBB00212005 -2015, YBB00342002-2015, YBB00242004-2015, YBBOO152002-2015, YBB00082005-2015, YBB00332002-2015
Product configuration
Standard configuration: main engine, micro printer, tear tension fixture
Optional parts: communication software, communication cable, breaking force fixture, combination cover opening force fixture, body tightness test fixture, pulling force fixture, etc
