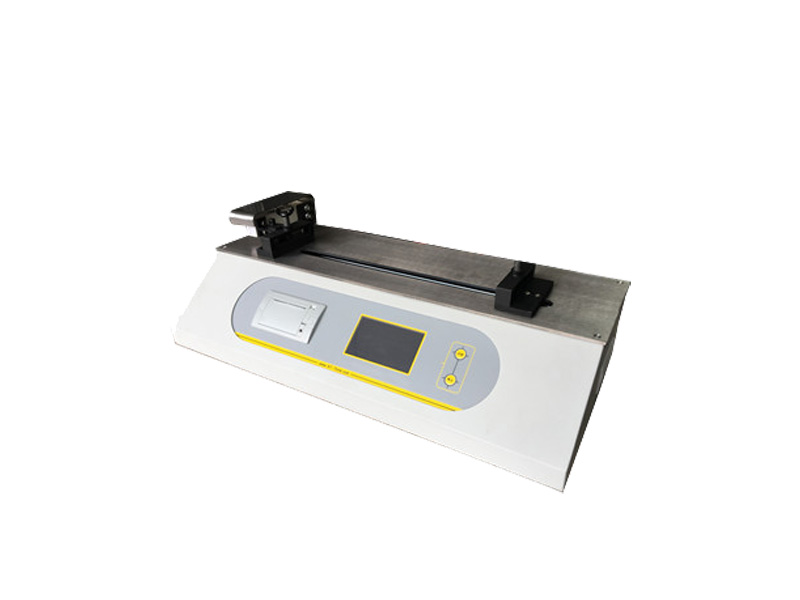

KZY-02 Paper tensile testing machine

KZY-02 paper tensile testing machine is suitable for testing wet tensile strength, tensile strength, breaking elongation, tensile energy absorption of paper, toilet paper, tissue paper, etc.

Online consultation
Consultation hotline:0531-88691870

Product Introduction / Product introduction

Principle of KZY-02 paper tensile testing machine

KZY-02 paper tensile testing machine is a microcomputer control, PVC menu type operation interface, TFT touch screen display process curve, and horizontal structure, sensor value is not affected by the weight of the fixture paper tensile testing machine.


Technical specification

(1) Product characteristics

Microcomputer control, LCD touch screen display test process curve

Horizontal structure, sensor value is not affected by the weight of the fixture

The sensor system adopts world-renowned components with stable and reliable performance

With the function of keeping the test force value, it is more convenient to view the experimental results

Equipped with micro printer, fast print output data, convenient for users to save

Equipped with standard RS232 interface, convenient system and computer external connection and data transmission

Dual acquisition of force value and displacement in the test process, and real-time display of test curve


(2) Technical parameters

Test range: 100N(5N, 10N, 30, 50N, 200N other range can be customized)

Accuracy: 0.5 grade

Force value resolution: 0.001N

Test speed: 0.5mm/min ~ 500mm/min

Effective stroke: 340mm

Displacement resolution: 0.01mm

Sample width: 0-55mm

Power supply: AC 220V 50Hz

Dimensions: 635mm(L)* 300mm(B)* 200mm(H)

Net weight: 26kg


Product configuration

Standard configuration: host, universal fixture, micro printer

Optional parts: communication software and cable
