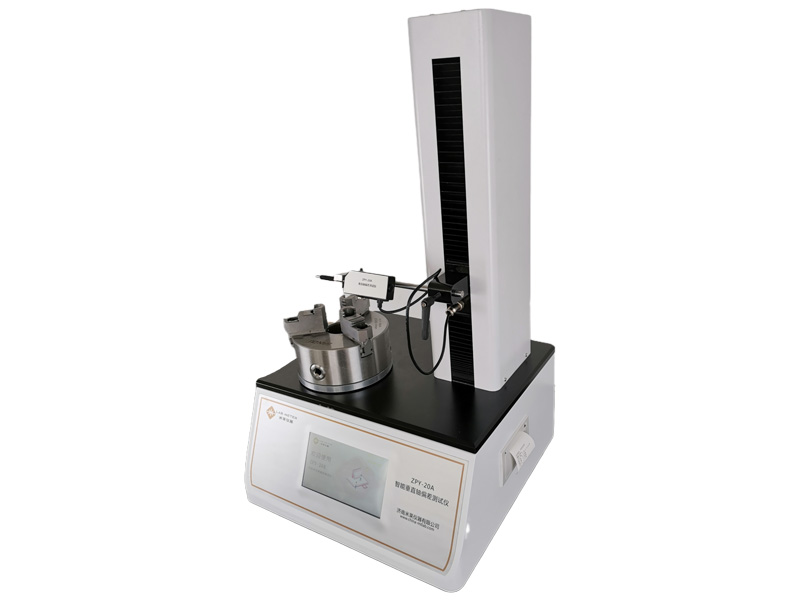

ZPY-20A Vertical axis deviation tester

The ZPY-20A intelligent vertical axis deviation tester is specialized in measuring the vertical axis deviation of various glass bottles, plastic bottles, infusion bottles, injection bottles, and porcelain bottle containers in the food, cosmetics, pharmaceutical and other industries. Fully automated computer-based testing mode. The axis deviation measuring instrument will automatically rotate to read the maximum, minimum, and deviation values, and draw the roundness curve to help customers analyze sample quality. It is an essential product for vertical axis testing of bottle products.

Online consultation
Consultation hotline:0531-88691870

Product Introduction / Product introduction

Product Features

Microcomputer control, large LCD touch screen display;

Automatically count the maximum, minimum, and axis deviation values, making it convenient for users to analyze the results;

The fixture is easy to operate, with good centering accuracy and stability, ensuring measurement accuracy;

The LCD screen displays the experimental process and curves in real-time, with precise measurement, easy operation, and intuitive results;

Menu style operation interface, user-friendly human-machine interaction, and convenient operation;

The measuring head automatically lifts and adjusts the position of the measuring point, making it convenient and practical;

Equipped with a micro printer to quickly print test results;

Equipped with data storage function, facilitating product testing data comparison and analysis;

Having the permission management function required by GMP, meeting GMP requirements.


Technical indicators

Sample diameter: 5-190mm

Instrument range: 0-20mm

Graduation value: 0.001mm

Instrument indication error: ± 0.005mm

Gripper speed: 0-50c/min adjustable

Measurable height: 5mm-400mm

Boundary dimension: 400mm (L) × 350mm(B) × 560mm(H)

Weight: 52kg


Testing standards

GB8452、QB2357、QB/T1868、YBB00192003-2015


Product configuration

Standard configuration: host, measuring device, micro printer

Options, communication software, communication cables
