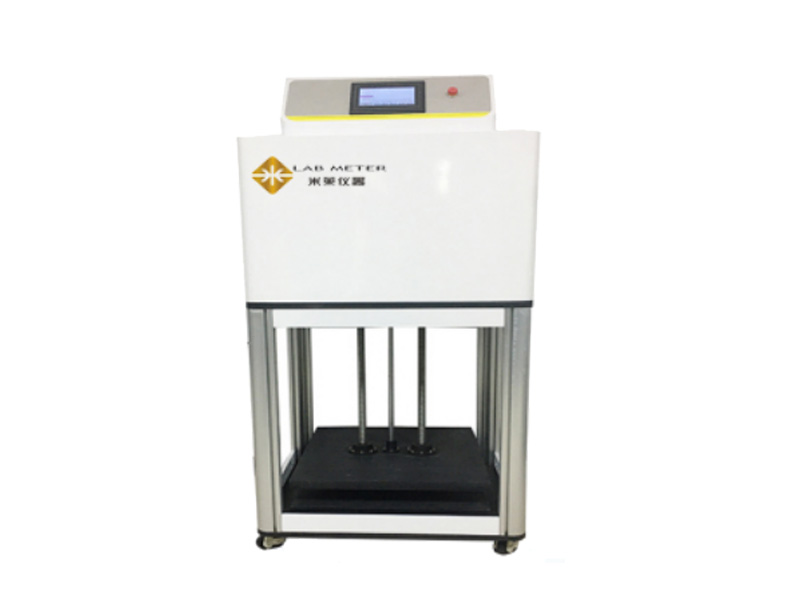

KYJ-20KN Box Compression Tester

Carton compression testing machine is the basic instrument of corrugated carton compressive strength performance test, suitable for all kinds of corrugated carton compressive strength test, standard test and stacking strength test.

Online consultation
Consultation hotline：0531-88691870

Product Introduction / Product introduction

Product characteristics

After the completion of the test, the automatic return function can automatically determine the crushing force and automatically save the test data

Three sets of speed, LCD display operation interface, a variety of units to choose from

Input relevant data and automatically convert compressive strength, with packaging stacking test function

Set the force and time directly, and stop automatically after the test is completed

Overload stop, emergency stop key, specimen damage automatic stop, upper and lower limit setting automatic stop

Fixed force, timing test, after the test, automatic reset

The equipment includes three test operating modes:

Strength test: can measure the maximum pressure resistance of the box

Fixed value test: according to the set pressure to detect the overall performance of the box

Stacking test: According to the requirements of the national standard, the stacking test can be carried out under different conditions such as 12 hours, 24 hours


Meet the standard

ISO12048, GB/T16491, GB/T4857.4, ASTMD642, TAPPIT804


Technical parameter

Range: 0-20KN (other range can be customized)

Accuracy: Level 1

Resolution: 0.01N

Force unit: kgf, gf, N, kN, lbf

Stress unit: MPa, kPa, kgf/cm2, lbf/in2

Travel range: 1000mm

Test space: 1m(L)×1m(W)×1m(H)

Test speed: 5mm/min, 10mm/min, 12.7mm/min

Mechanical system: High precision ball screw

Power supply: AC220V/50HZ

Weight: 350KG


Standard configuration

A host, a sensor, a micro printer
