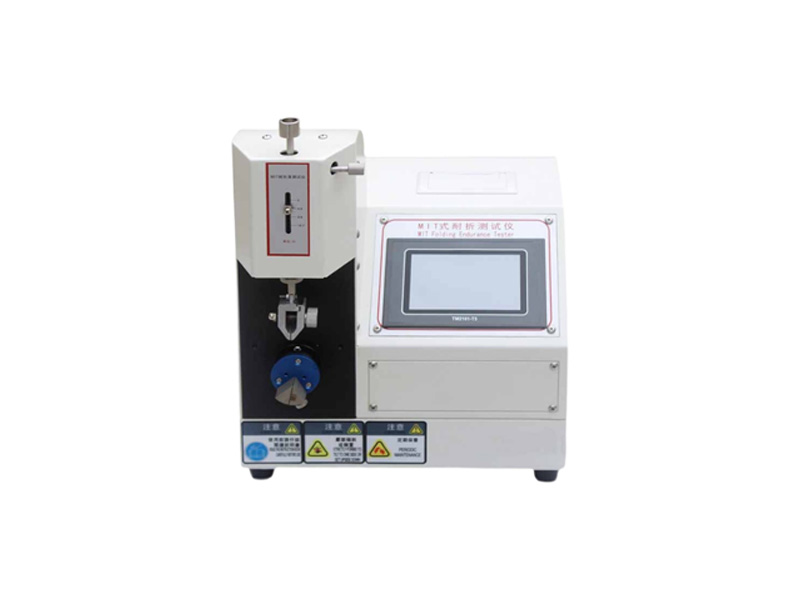

MIT Carton folding tester

MIT bending resistance is according to the national standard GB/T2679.5-1995 (paper and board bending resistance measurement) research and development of a new instrument. The instrument has the parameters included in the standard test, conversion, adjustment, display, memory, printing, with data processing function, can directly obtain the statistical results of the data. The instrument is compact in structure, small in size, light in weight, full in function, bench place, easy to operate, stable in performance, suitable for the determination of bending resistance of various paperboards.

Online consultation
Consultation hotline:0531-88691870

Product Introduction / Product introduction

Standard basis

The parameters and functions of the instrument meet the national standards:

Paper and board -- Determination of flexure (MIT flexure meter method)

Paperandboard - Determinationoffoldingendurance (MITtester)


Technical parameter

Measuring range

0~99999

Folding Angle

135±2°

Folding speed

175±10次/min

Spring tension

4.91~14.72N

Jig distance

0.25mm/0.5mm/0.75mm/1.0mm

printout

Modular integrated thermal printer

Working environment

Temperature (0~35) ℃, humidity < 85%

Overall dimension

300*350*450mm
